OPTIMAL Galvanised Pipe Clamp 33466

One-Hand Latching • Noise-Damped • Galvanised Steel

OPTIMAL Galvanised Pipe Clamp 33466 (MÜPRO) is a robust, high-quality clamp engineered for fast, secure pipe attachment in industrial, commercial, and residential installations. Its advanced latching design enables true one-hand operation—ideal for overhead work and tight spaces—while the galvanised steel body and DÄMMGULAST® lining deliver long service life and acoustic comfort.

The clamp’s positive-fit edge hook-in opening locks reliably to prevent unintentional release, yet the pipe can remain free to move for alignment prior to final tightening. Dual locking screws extend the usable diameter range and simplify on-site adjustments.

Applications

  • Pipe attachments in industrial environments
  • Fastening of drinking water and heating pipes
  • General indoor building services and HVAC runs

Key Features & Advantages

  • Practical one-hand latching fastener for quick installation
  • Two locking screws accommodate a wider pipe diameter range
  • One-piece clamp for fast, efficient assembly
  • Positive-fit edge hook-in ensures safe closure and prevents accidental opening
  • Pipe can be repositioned before final tightening—easy alignment on site
  • Safety latch engagement prevents unintentional release
  • Captive cross-head bolts—convenient for power driver use
  • DÄMMGULAST® vibration control lining (green stripe) reduces sound by up to 18 dB(A)
  • Ergonomic, injury-proof design; high mechanical strength
  • Load capacity up to 2,696 N (size dependent)

Technical Specifications

Material Galvanised Steel
Vibration / Acoustic Lining DÄMMGULAST® (green identification stripe)
Noise Reduction Up to 18 dB(A)
Mounting Thread M8 / M10
Operating Environment Indoor

Max. Recommended Load by Size

Size Range Max. Load (N)
¼″ – 1¼″ 800
1½″ – 70 mm 1,690
2½″ – 116 mm 2,320
125 mm – 6″ 2,696

Advantages in Use

  • Enables single-handed closure under ceilings or in confined spaces
  • Secure pipe hold with freedom to realign before final torque
  • High reliability under load and vibration; long service life
  • Meets demanding acoustic and safety expectations for building services

Typical Use Cases

  • HVAC and mechanical services
  • Building service piping networks
  • Water supply and heating systems
  • Industrial pipework and process lines
Inquire Now

Insulation Clamps RG 80 with DÄMMGULAST® and Insulation Shells 33506

View Product

Single Bossed Clamps – Heavy-Duty Version with DÄMMGULAST® Yellow 33483

View Product

Saddle Clamps – Hot-Dip Galvanised 132937

View Product

Single Bossed Clamps – with DÄMMGULAST® Black (Hot-Dip Galvanised) 129864

View Product

Single Bossed Clamps – Heavy-Duty, with DÄMMGULAST® Yellow (Hot-Dip Galvanised)33484

View Product

Single Bossed Clamps – Heavy-Duty, Without Lining (Hot-Dip Galvanised)33485

View Product

Anchor Point Pipe Clamp Type 170 FL (Galvanised) 33533

View Product

Pipe Clamps, DIN 3567 Form A 33479

View Product

Duct Clamps – Without Lining (Galvanised) 33493

View Product

Duct Clamps with DÄMMGULAST® Orange (Galvanised) 33492

View Product

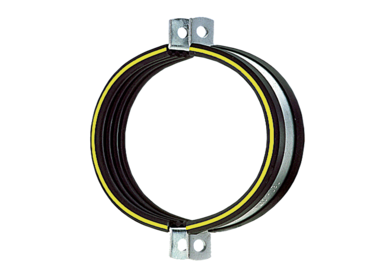

Suspension Clamps for Spiral-Seam Pipes, Two-Piece with DÄMMGULAST® Yellow (Galvanised) 33489

View Product

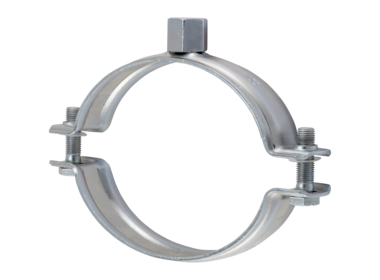

Single Bossed Clamps – Without Lining (VdS/FM Approved, Galvanised) 109716

View Product

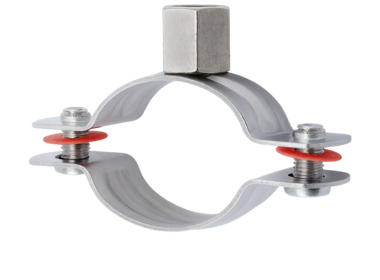

Single Bossed Clamps – Without Lining (Stainless Steel) 122299

View Product

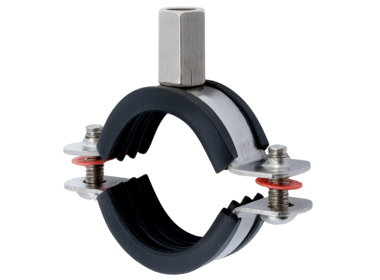

Single Bossed Clamps – with DÄMMGULAST® Black (Stainless Steel) 122298

View Product

Single Bossed Clamps – Heavy-Duty, Without Lining (Galvanised) 33482

View Product

Single Bossed Clamps – Heavy-Duty, with DÄMMGULAST® Red (Galvanised) 33481

View Product

Single Bossed Clamps – Heavy-Duty, with DÄMMGULAST® Yellow (Galvanised) 33480

View Product

Safety Clips – Galvanised 33457

View Product

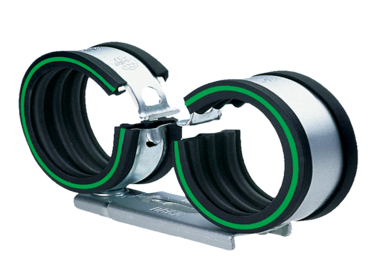

VARIO-Twin Pipe Clamps – Galvanised 33458

View Product

EASY Clips – Galvanised 33455

View Product

Duo Pipe Clamp – Galvanised 33459

View Product

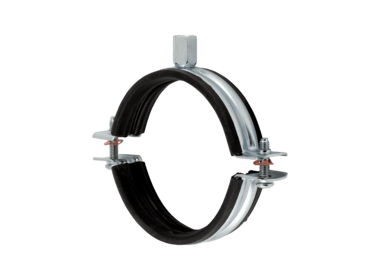

EURO-QUICK® Type EXP – Galvanised Pipe Clamp with DÄMMGULAST® 33460

View Product

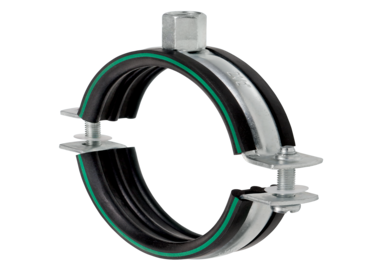

Single Bossed Clamps JUNIOR – Two-Piece, Galvanised 33467
