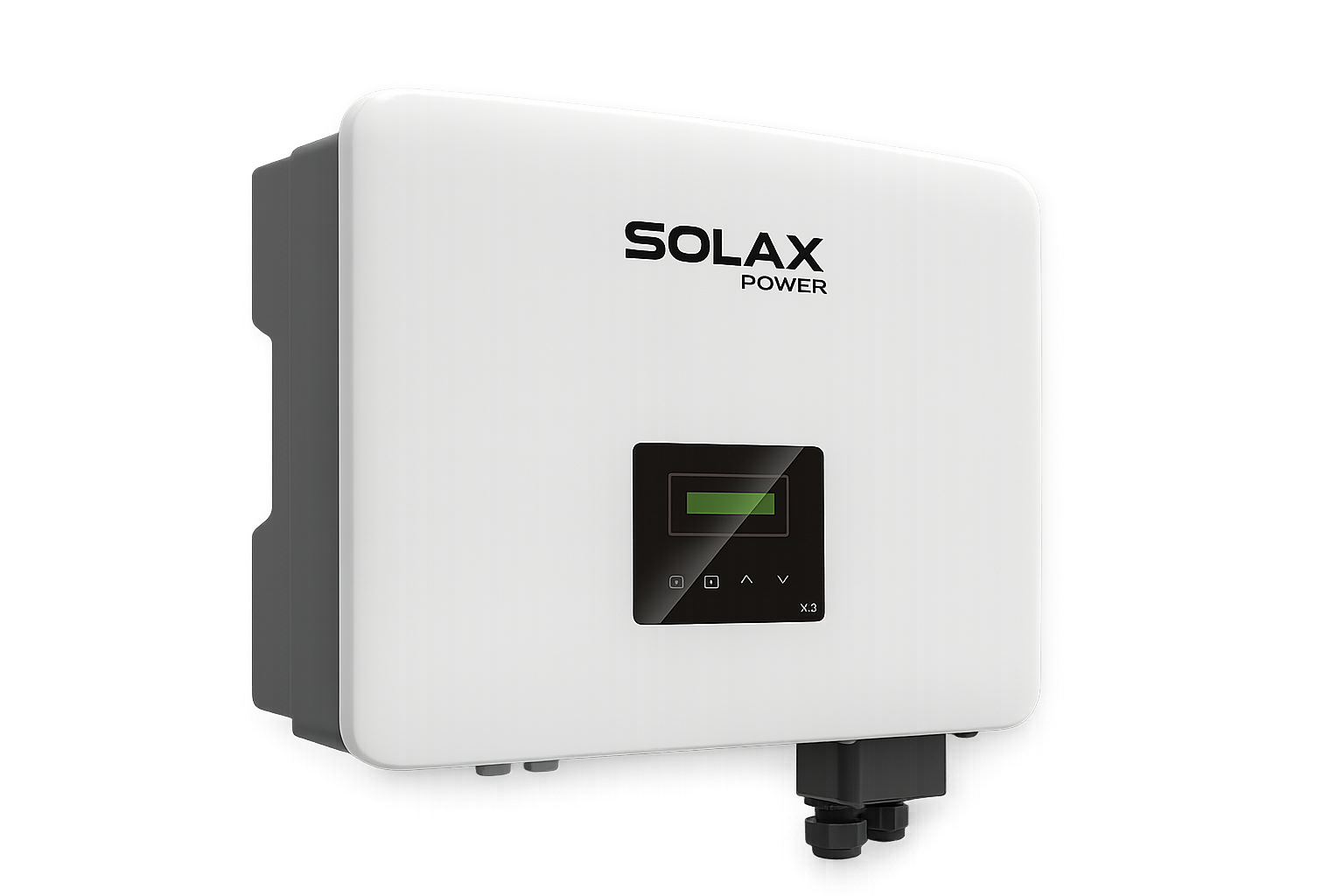

SolaX X3-PRO G2 three-phase residential on-grid inverter

SolaX X3-PRO G2 three-phase residential on-grid inverter is a high-efficiency grid-tied inverter engineered for large residential and small commercial photovoltaic systems. Designed for EPC contractors, solar installers, and wholesale distribution partners, the X3-PRO G2 series delivers scalable output from 8kW up to 30kW, combining advanced MPPT tracking, high DC oversizing capability, and stable three-phase grid compliance.

SolaX X3-PRO G2 Three-Phase Residential On-Grid Inverter Overview

The SolaX X3-PRO G2 three-phase residential on-grid inverter supports up to 150% DC oversizing and 110% AC overloading output, allowing system designers to optimize DC/AC ratios for higher annual energy yield. With maximum efficiency reaching 98.5% and European efficiency up to 98.0%, the inverter ensures reliable long-term performance under varying irradiance and temperature conditions.

• Power Classes: 8kW / 10kW / 12kW / 15kW / 17kW / 20kW / 25kW / 30kW
• Maximum PV Input Voltage: 1100V
• Rated PV Input Voltage: 650V
• MPPT Voltage Range: 160V – 980V
• Start-Up Voltage: 200V
• Max Input Current per MPPT: 32A

Advanced MPPT & High Power Density

Equipped with dual or triple MPPT configuration (model dependent), the SolaX X3-PRO G2 three-phase residential on-grid inverter supports flexible string design across multi-orientation rooftops. Built-in global MPP scan enhances real-time optimization, improving performance in partially shaded conditions.

Ultra-high power density reduces installation footprint while maintaining robust output capability. With recommended PV array power scaling up to 45.0 kWp (30kW model), the inverter supports large residential villas, commercial rooftops, and distributed C&I projects.

Intelligent Design & Smart Monitoring

The inverter integrates 24-hour monitoring via WiFi, LAN, or optional 4G connectivity, enabling remote diagnostics and performance tracking. Smart loads management allows integration with heat pumps and EV chargers, supporting modern residential energy ecosystems.

Built-in export power control ensures compliance in grid-restricted environments, while adjustable power factor (~1, 0.8 lagging to 0.8 leading) maintains stable synchronization with utility networks.

Safety, Protection & Compliance

The SolaX X3-PRO G2 three-phase residential on-grid inverter incorporates comprehensive protection architecture to enhance operational safety and reduce service risks:

• Type II Surge Protection on both DC and AC sides
• Active anti-islanding protection (frequency shift)
• DC reverse-polarity protection
• Residual current detection
• Optional AFCI support
• AC overcurrent & short-circuit protection

Certified to international standards including IEC/EN 62109-1/-2, EN50549, AS 4777.2, VDE4105, IEC 61727, IEC 62116, and IEC 61683, the inverter is suitable for deployment across multiple regulated markets.

Environmental & Mechanical Specifications

• Ingress Protection: IP66
• Operating Temperature: -30°C to 60°C
• Maximum Operating Altitude: 4000m
• Dimensions: 482 × 417 × 186 mm
• Net Weight: 24.5 kg – 28.0 kg (model dependent)
• Cooling Concept: Natural cooling (lower models) / Smart air cooling (higher models)

The IP66-rated enclosure ensures reliable outdoor installation in demanding environmental conditions, supporting long-term durability in coastal, high-humidity, and high-temperature regions.

Wholesale Supply & EPC Project Support

We supply the SolaX X3-PRO G2 three-phase residential on-grid inverter for bulk procurement, structured EPC tenders, and distribution partnerships. Our B2B supply framework supports container-level shipments, project-based pricing, and standardized inverter deployment across residential and light commercial portfolios.

Explore our full range of three-phase solar inverters for wholesale supply to standardize residential and light commercial PV deployments.

For official technical documentation and certification updates, visit the SolaX Power official website.

If you are sourcing 8kW–30kW three-phase on-grid inverters for upcoming projects, contact our wholesale solar team to receive distributor pricing, availability schedules, and technical configuration guidance aligned with your regional grid code requirements.
