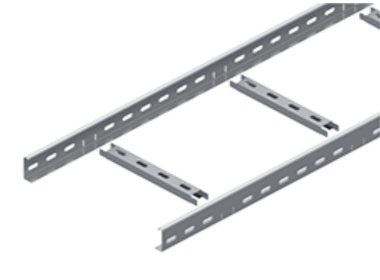

H60 Cable Ladder System – Heavy Duty Cable Management Solution

The H60 Cable Ladder system is a robust cable management solution designed for industrial electrical installations, infrastructure projects, and commercial buildings. Cable ladder systems are ideal for supporting heavy power cables over long spans while providing excellent ventilation, easy cable installation, and efficient maintenance access.

Manufactured using high-quality steel and engineered according to international cable management standards, the H60 cable ladder series offers durability, structural strength, and long-term reliability for EPC contractors, electrical installers, distributors, and MEP contractors.

Engineered for High-Capacity Cable Routing

The system features a 60 mm side height ladder structure that provides strong cable support while maintaining open airflow for heat dissipation. The ladder-type design allows installers to route large power cables easily and ensures efficient cable cooling in high-load installations.

• Side Height: 60 mm
• Standard Length: 3000 mm ladder sections
• Available Widths: 100 mm to 600 mm
• Material Thickness: 1.2 mm and 1.5 mm

These configurations allow engineers and contractors to design cable ladder systems that match different load capacities and cable routing requirements. :contentReference[oaicite:1]{index=1}

Durable Materials and Corrosion Protection

The H60 cable ladder is manufactured using steel strip galvanised according to the Sendzimir method, ensuring strong corrosion resistance and reliable long-term performance in industrial environments.

Available surface finishes include:

• Pre-Galvanised Steel (PG) for indoor installations
• Hot-Dip Galvanised Steel (HDG) for outdoor or corrosive environments
• Stainless Steel AISI 304L / 316L for aggressive industrial environments
• Powder Coated Finishes (RAL colours) for architectural or specialised projects

Complete Cable Ladder System with Accessories

The H60 cable ladder system includes a comprehensive range of fittings and accessories that allow contractors to build complete cable routing networks across large installations.

• 90° horizontal ladder bends
• 45° horizontal ladder bends
• Tee ladder bends
• Cross ladder bends
• Vertical inside and outside bends
• Modular adjustable ladder risers
• Cable separators
• Straight connectors and couplers

These accessories enable installers to create complex cable routing paths while maintaining structural integrity and installation efficiency.

Fast Installation and Secure Connections

The ladder sections are connected using couplers and bolt sets such as CFS M6 or CFS M8 screw sets. Typically two couplers are used for each ladder length to ensure secure connections and stable cable support.

The modular design allows installers to assemble straight runs, bends, and vertical transitions quickly without extensive on-site fabrication.

Applications

The H60 cable ladder system is widely used in projects where heavy power cables require reliable support and organised routing.

• Industrial manufacturing facilities
• Power plants and substations
• Data centres and telecom infrastructure
• Commercial buildings and shopping complexes
• Infrastructure and transportation projects
• Airports, hospitals, and large public buildings

Cable Ladder Systems Supplier in Singapore

NEXE supplies high-quality cable ladder systems for EPC contractors, electrical installers, distributors, and MEP contractors across Singapore and Southeast Asia.

Explore our complete range of cable trays and ladder systems designed for professional cable management installations.

For detailed technical specifications and full product configurations, refer to the official Metaksan cable ladder systems documentation.

Bulk Supply and Project Enquiries

If you are sourcing cable ladder systems for infrastructure projects, industrial facilities, or commercial installations, contact NEXE for technical specifications, bulk pricing, and project supply support.
